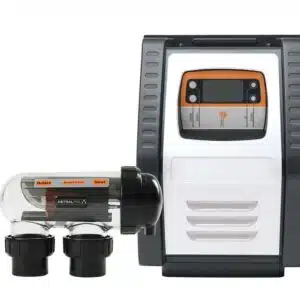

Davey Chloromatic MCS24CT Self Cleaning Salt Chlorinator
The MCS24CT model has a 12 volt pool light transformer built in, to run a pool light
T= Light transformer
Being discontinued and replaced by the Davey Chloromatic DNP25C
KEEP YOUR POOL CLEAN AND CLEAR WITH THE SIMPLE CHLOROMATIC
- Suitable for use with all available pool salts, including mineral salts containing Magnesium and Potassium
- Maximises the value and enjoyment of your pool
- Eziset digital timer for quick and simple set-up with large, easy to read digital display and LED indicators
- Models available with reverse polarity electrolytic cells for low maintenance
- Large surface area of cell plates for high rate chlorine production
- High flow rate cell design for rapid pool turnover
- Made with corrosion resistant, UV stabilised materials for long service life
- Winter mode setting to reduce sanitiser output during the colder months, saves energy and protects equipment
- ‘Low salt’, ‘no flow’ indicators and overload protection
- Flow detector stops electrolysis if no flow is present, preventing dangerous gas build-up
- Pump ‘cut out’ protects the pump when no water detected (on reverse polarity models)
- Light transformer available (on some models)
- Operating salt level: 4,500-6,000ppm
- Optional pH pump and control models available
Maximum Pool Size Pool for this Model:
In Temperate Climates 25ºC to 30ºC, Maximum Pool Size is 75,000L
In Hot & Tropical Climates >30ºC, Maximum Pool Size is 55,000L
Model | Chlorine Gas Production (g/hr 100%) | Reverse Polarity | pH Control | Time Clock | Light | Maximum Pool Size (Litres) | |||
---|---|---|---|---|---|---|---|---|---|
Temperate Climates 25°C to 30°C | Hot & Tropical Climates >30°C | ||||||||
MCS16C | 16 | Yes | option | Yes | 50,000 | 35,000 | |||
MCS16CT | 16 | Yes | option | Yes | Yes | 50,000 | 35,000 | ||
MCS24C | 24 | Yes | option | Yes | 75,000 | 55,000 | |||
MCS24CT | 24 | Yes | option | Yes | Yes | 75,000 | 55,000 | ||
MCS36C | 36 | Yes | option | Yes | 112,000 | 80,000 | |||
MCS50C | 50 | Yes | option | Yes | 200,000 | 160,000 |
PDF:
http://www.davey.com.au/media/custom/upload/ChloroMatic_Datasheet_DWP0048-5.pdf
