- Extremely energy efficient, C.O.P. up to 16.28
- Latest full stepless inverter technology
- Available in 7 models, 9kW to 28kW
- Heating and cooling capability
- Built-in timers
- Easy to use colour LCD touchscreen controller
- Wi-Fi control
- Quiet operation
- Robust ABS cabinet
- Eco-friendly and safe R32 refrigerant
- Automatic defrost system
- Horizontal front discharge air flow
- Simple installation
- Sleek design
- Small footprint, ideal for tight installations
- Guaranteed stable performance from -15°C air
- Ideal to work with solar PV panels
VERY QUIET OPERATION
The low noise fan blades ensures minimal operating noise which is ideal for you and your neighbours
EXCEPTIONAL PERFORMANCE & LOW OPERATING COSTS
Evo Force-i series delivers pool heating with exceptional performance, low operating costs & a C.O.P. as high as 16.28 + .
Combine your Evo Force-i pool heat pump with a pool blanket &/or your solar PV for the ultimate energy efficient pool heating
LATEST STEPLESS DC FULL INVERTER TECHNOLOGY
Incorporating the latest full inverter technology – including DC stepless compressors, fans, and PC boards; the Force-i range will automatically adjust it’s power and electricity consumption based on the exact requirements of your pool. This ensures your pool reaches the desired temperature faster, and is maintained more efficiently – SAVING YOU ON YOUR HOUSEHOLD ENERGY BILL.
TOUCHSCREEN CONTROLLER
Designed with a cutting edge, intelligent LCD colour touch screen controller, you can maintain your water temperature to within 0.1 of a degree while maximising optimum heater operating performance.
WI-FI CONTROL
Control your Evo Force-i pool heat pump anytime, anywhere wiht the smart Wi-Fi controller app. Available for iOS and Android, the smart phone controller app offers you an easy and convenient way to monitor and control your pool temperature.

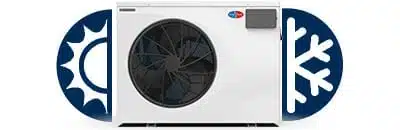

HEATING & COOLING MODES
The Force-i series is equipped to automatically heat or cool your pool water based on your set temperature – so you can be sure your pool is always at your desired temperature
AUTOMATIC DEFROST
Designed with a four-way valve reverse defrost method, the Evo Force-i series provides automatic defrosting and allows the heat pump to work efficiently in ambient air temperatures as low as -15°C.
LATEST CORROSION PROTECTION TECHNOLOGY
The bluetech hydrophilic coating on the condenser fins is the latest technology in corrosion protection allowing your heat pump to maintain its high efficiency for many years to come.
TITANIUM HEAT EXCHANGER
The titanium thread heat exchanger ensures maximum heat transfer with the ultimate corrosion resistance, improving the heat transfer efficiency by up to 30% compared to standard heat exchangers.

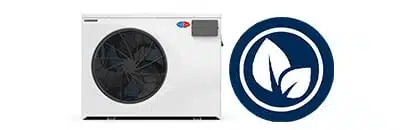

ECO FRIENDLY & SAFE R32 REFIGERANTThe Evo Force-i series heat pumps uses eco friendly and safe R32 refrigerant.
ELECTRONIC EXPANSION VALVE 2 TECHNOLOGY
Electronic Expansion Valve 2 Technology is the absolute latest and the best possible refrigeration control system available in the market today. This results in higher C.O.P. and improved efficiency of up to 20% compared to other commercial heater brands.
| Evo Force-i 9 | Evo Force-i 12 | Evo Force-i 17 | Evo Force-i 19 | Evo Force-i 24 | Evo Force-i 28-3 | ||
|---|---|---|---|---|---|---|---|
| Heating capacity | kW | 9 | 12 | 17 | 19.5 | 24.2 | 28.3 |
| Consumed power | kW | 0.33~1.33 | 0.18~1.77 | 0.24~2.52 | 0.28~3.15 | 0.35~4.00 | 0.42~4.64 |
| C.O.P. | / | 16.13~6.76 | 16.28~6.79 | 15.71~6.76 | 16.16~6.19 | 16.11~6.05 | 16.13~6.10 |
| Power supply | / | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 |
| Max current per phase | AMPS | 9.3 | 12.1 | 14.7 | 18.7 | 24.1 | 11.7 per phase |
| Connection type | / | 10amp | 15amp | hard wired | hard wired | hard wired | hard wired |
| Fan quantity | / | 1 | 1 | 1 | 1 | 2 | 2 |
| Fan speed | RPM | 400-800 | 400-800 | 500-750 | 500-900 | 400-800 | 400-900 |
| Noise dB(A) at 1M | dB(A) | 40-50 | 42-52 | 44-53 | 46-56 | 46-57 | 48-58 |
| Noise dB(A) in silence mode at 1M | dB(A) | 40 | 42 | 44 | 45 | 46 | 48 |
| Refrigerant gas | / | R32 | R32 | R32 | R32 | R32 | R32 |
| PVC water connection | mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Water flow volume | L/M | 60 | 80 | 90 | 110 | 150 | 160 |
| Water pressure drop | kPa | 4 | 4.5 | 5 | 6 | 11 | 15 |
| Net dimensions L/W/H | mm | 1046/453/768 | 1046/453/768 | 1161/490/862 | 1161/490/862 | 1161/490/1274 | 1161/490/1274 |
| Net weight | kg | 52 | 58 | 69 | 90 | 111 | 120 |
*Heating: 27°C air / water 26°C / humid 80% * The data above is based on the EVO heat pump only, it does not include auxiliary devices. Product specification information provided above is correct at the date of printing, this data may change without notice.
