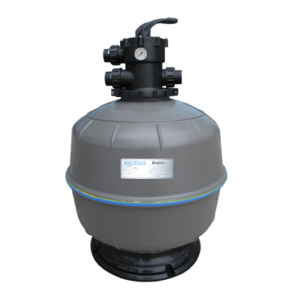

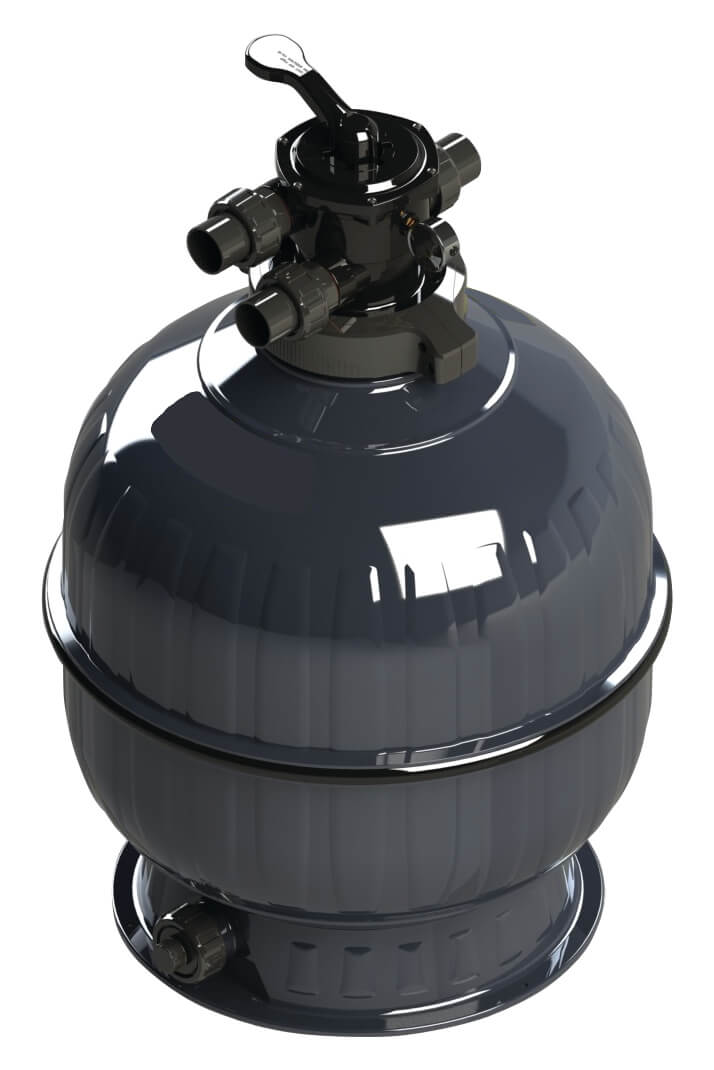

Astral CA 340 Media Filter
AstralPool’s CA Media Filter is 100% designed and made in Australia from the most advanced injection moulding and assembly process of any filter. Engineered and designed for high strength, long life, optimal flow rates and easy installation and service the CA Media filter range provides the best value for money and is designed for tough Australian conditions.
Premium 10 lateral under drain designed for low pressure loss which requires less power consumption for optimal flow rates
Unique under drain ensures effective backwashing in less time saving water
Fully injection moulded for high strength and longer life
Suitable for variable speed pumps such as the Viron XT P320
Unique lock ring secures valve in just seconds and enables faster and lower cost maintenance and installation
Compact size reduces the space and room needed
CRYSTAL CLEAR The AstralPool CA Media Filter produces crystal clear water using fine sand or recycled crushed glass media as the filter medium. Each filter incorporates an engineered multiport valve to direct the water flow and minimise the resistance through the filter, making the CA Media Filter ideal for today’s energy efficient high performance pumps.
FILTER BREAKTHROUGH The CA range represents the largest investment in design and production for any residential filter range using high quality hardened steel tooling to produce high tolerance, high strength tanks which provide the longest trouble free life available. This high tolerance enables the screw on lock ring to secure the multiport valve along with self sealing barrel unions which enable fast, simple installation, easy service and access to the filter media in future years.
WARRANTY Each filter is covered by a limited 10 year warranty on the tank and 12 month warranty on the valve and internals.
Capacity Table
Model | Tank Diameter | MPV size | 8 hour turnover | Sand Required | Glass Required |
CA280 | 665mm | 40mm | 134,400 | 120kg | 120kg |
CA340 | 742mm | 50mm | 153,600 | 150kg | 150kg |
CA400 | 816mm | 50mm | 192,000 | 200kg | 200kg |
Dimensions with MPV installed
Model | Height | Width | Weight |
CA280 | 106cm | 66.5cm | 20kg |
CA340 | 107.6cm | 74.2cm | 22kg |
CA400 | 123.3cm | 81.6cm | 28kg |
We have these on display in store at our shop at 211 Stirling Hwy Claremont and we have an experienced installer we can book if you need installation here in Perth.
